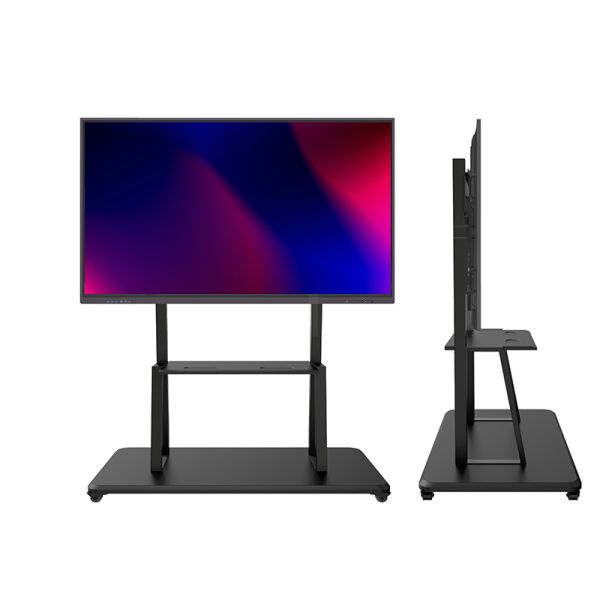

86 Inches Interactive Whiteboard All In One Panel IFP Smart Board Digital for school
20point touch, 10 point writing, 2 points zoom/drag, gesture erase (hand back erase),
Annotation function: making annotations on screen or during the presentation
Digital whiteboard function with Scan QR code to share annotation/memos
Small tools of the interactive flat panel
Wireless projection: share laptop, mobile screens to touch screen without cable,
just one click of wireless screen dongle.
OPS computer: quick switch from Android to OPS computer
Touch USB, HDMI, WIFI etc multi-input and output ports
Can connect with the document camera,
wireless microphone for class teaching
Product Paramenters
| Diagonal display size | | 65" | 75" | 86" | 98" | 110" | | Bezel color | Aluminum frame(Silver color) | √ | √ | √ | √ | √ | | Back Light | Direct type LED | √ | √ | √ | √ | √ | | Active area (mm) | (H) * (V) | 1428.48 * 803.52 | 1649.66 * 927.93 | 1895.04 * 1065.96 | 2158.85 * 1214.35 | 2436.48 * 1370.52 | | Resolution | 3840*2160 /UHD | √ | √ | √ | √ | √ | | Aspect Ratio | 16:9 | √ | √ | √ | √ | √ | | Contrast Ratio | 1200:1/4000:1 | √ | √ | √ | √ | √ | | Colors | 1.07 billion colors | √ | √ | √ | √ | √ | | Brightness | 350cd/m2 | √ | √ | √ | √ | √ | | Viewing angle | 178° | √ | √ | √ | √ | √ | | Glass hardness | Mohs-7 level | √ | √ | √ | √ | √ | | Screen surface | 4mm thickness Anti-Glare glass | √ | √ | √ | √ | √ | | Panel Interactivity | | Touch technology | IR touch | √ | √ | √ | √ | √ | | Touch points | 20 points (Win 7/8/10)
10 points touch (Android) | √ | √ | √ | √ | √ | | Touch accuracy | ±2mm(Windows) | √ | √ | √ | √ | √ | | Recognition | Finger or passive stylus | √ | √ | √ | √ | √ | | Response Rate | <4ms(single touch)
<10ms(max touch inputs) | √ | √ | √ | √ | √ | | Minimum object size | 2mm | √ | √ | √ | √ | √ | | Response Time | <5 ms | √ | √ | √ | √ | √ | | System support | Win10/Win8/Win7/Mac OS
/Android/Chrome OS/Linux | √ | √ | √ | √ | √ | | Front side Connectivity | | Front ports | USB3.0 * 3 lines (Public for both Android & PC) ; Touch out USB B type * 1 line; HDMI in 2.0 * 1 line; Type C* 1 Line | | Front Button | Indicator: Red/Blue; Buttons:Screen Record; Image Aspect Ratio; V-; V+; Setting ; Eye Protect; Power | | Front speaker | 10W*2 | | Rear side Connectivity | | USB 2.0 Type A | 2 | √ | √ | √ | √ | √ | | Touch USB 2.0 Type A | 1 | √ | √ | √ | √ | √ | | HDMI in | 2 | √ | √ | √ | √ | √ | RJ45 in & out
(public for Android & PC) | 1 | √ | √ | √ | √ | √ | | SPDIF OUT | 1 | √ | √ | √ | √ | √ | | AV in | 1 | √ | √ | √ | √ | √ | | AV out | 1 | √ | √ | √ | √ | √ | | VGA in | 1 | √ | √ | √ | √ | √ | | VGA audio in | 1 | √ | √ | √ | √ | √ | | Earephone | 1 | √ | √ | √ | √ | √ | | MIC in | 1 | √ | √ | √ | √ | √ | | YPBPR IN | 1 | √ | √ | √ | √ | √ | | TF CARD | 1 | √ | √ | √ | √ | √ | | RS232 | 1 | √ | √ | √ | √ | √ | | Windows OPS Slot | OPS & OPS-C Intel standard | √ | √ | √ | √ | √ | | Hotspot | Yes | √ | √ | √ | √ | √ | | Bluetooth | V 5.0 | √ | √ | √ | √ | √ | | WiFi | IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz
Or IEEE802.11an 2.4GHz | √ | √ | √ | √ | √ | | Operating system | | Android Version | Android 11.0 | √ | √ | √ | √ | √ | | Chipset | Amlogic T982 | √ | √ | √ | √ | √ | | CPU | 4×ARM Cortex-A55 | √ | √ | √ | √ | √ | | GPU | RM Mali-G52 | √ | √ | √ | √ | √ | | RAM | DDR4 2GB (4G for Optional) | √ | √ | √ | √ | √ | | ROM | 16GB (32GB for Optional) | √ | √ | √ | √ | √ | | Compliant with | Windows; Mac; Linux; Chrome OS | √ | √ | √ | √ | √ | | Physical specifications | | Net Weight | (kg±2) | 45 | 58 | 80 | 92 | 110 | | Gross Weight | (kg±2) | 56 | 68 | 93 | 110 | 144 | Overall size(mm)
(without bracket) | (L*H*W) | 1483.8 * 898 * 91 | 1706 * 1022 * 91.2 | 1958.8* 1154.4 * 91.2 | 2216 * 1314.5 * 95.5 | 2499.6 * 1474.2 * 95.5 | Overall size(mm)
(with bracket) | (L*H*W) | 1483.8 * 898 * 121 | 1706 * 1022 * 121.2 | 1958.8*1154.4*121.2 | 2216 * 1314.5 * 125.5 | 2499.6 * 1474.2 * 137.5 | | Carton size(mm) | (L*H*W) | 1590 * 1110 * 200 | 1820 * 1240 * 200 | 2060*1370*200 | 2362 * 1533 * 210 | 2606 * 1593.1 * 200 | | VESA | (mm) | 500*400 | 600*400 | 800*400 | 1000*400 | 1200*600 | | Electrical | | Input Voltage | 90-264V AC | √ | √ | √ | √ | √ | | Power Consumption(Standby) | <0.5W | √ | √ | √ | √ | √ | | Power Consumption | | Maximun< 225W | Maximun< 335W | Maximun< 450W | Maximun< 650W | Maximun< 760W | | Environmental | Working
Temperature | 0℃ ~ 40℃ | √ | √ | √ | √ | √ | Storage
Temperature | 一20℃ ~ 60℃ | √ | √ | √ | √ | √ | | Working Humidity | 10% ~ 90% RH
Non-Condensing | √ | √ | √ | √ | √ | | Storage Humidity | 10% ~ 60% RH
Non-Condensing | √ | √ | √ | √ | √ | | Accessories | | Accessories | Pen * 1pcs, Remote control *1pcs, 2m power cord *1pcs, wall mount kit;
Wireless dongle(Optional); Mobile trolley cart(Optional); Smart Pen (Optional) | |
